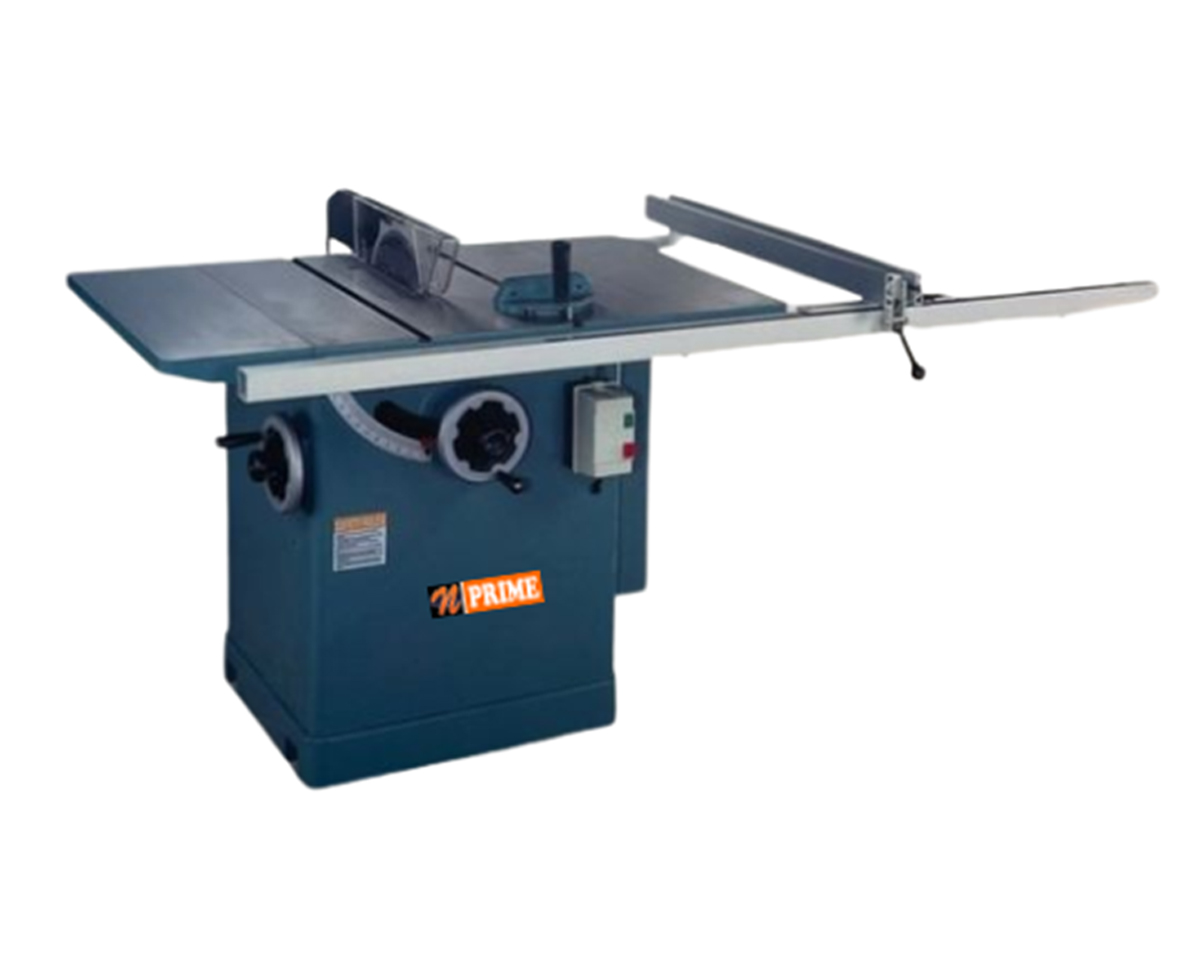

Tilting Arbor Saw
Tilting Arbor Saw
- Brand Name.
- SKU.NP-049
- Category.Solid Woodworking
TC-10L
- Tilting Arbor Saw.
TC-16
- Tilting Arbor Saw .
| MODEL | TC-10L | TC-16 |
| DIAMETER OF SAW BLADE | 250MM | 16"(405MM) |
| MAX.DEPTH OF CUT (90 DEGREE) | 76MM | 140MM |
| MAX.DEPTH OF CUT (45 DEGREE) | 50.8MM | 98MM |
| ARBOR DIA | 5/8" (1",30MM OPTIONAL) | 1"(30MM OPTIONAL) |
| ARBOR SPEED | 4200RPM | 3750RPM |
| TABLE SIZE | 915*685MM | 48"*38"(1220*965MM) |
| TABLE HEIGHT | 857MM | 857MM |
| SLIDING TABLE CAPACITY | 3'*6'(914*1828MM) | 4'*8'(1220*2440MM) |
| 4'*8'(1220*2440MM) | ||
| MAX.RIP TO RIGHT OF BLADE | 1270MM | 1270MM |
| MOTOR | 3HP(2HP,5HP OPTIONAL) | 7.5HP(10HP OPTIONAL) |
| NET WEIGHT | 407 LBS(185KGS) | 869 LBS(395KGS) |
| GROSS WEIGHT | 497 LBS(225KGS) | 1034 LBS(470KGS) |
| PACKING SIZE | 29"*36"*42" | 37"*44"*42 |
