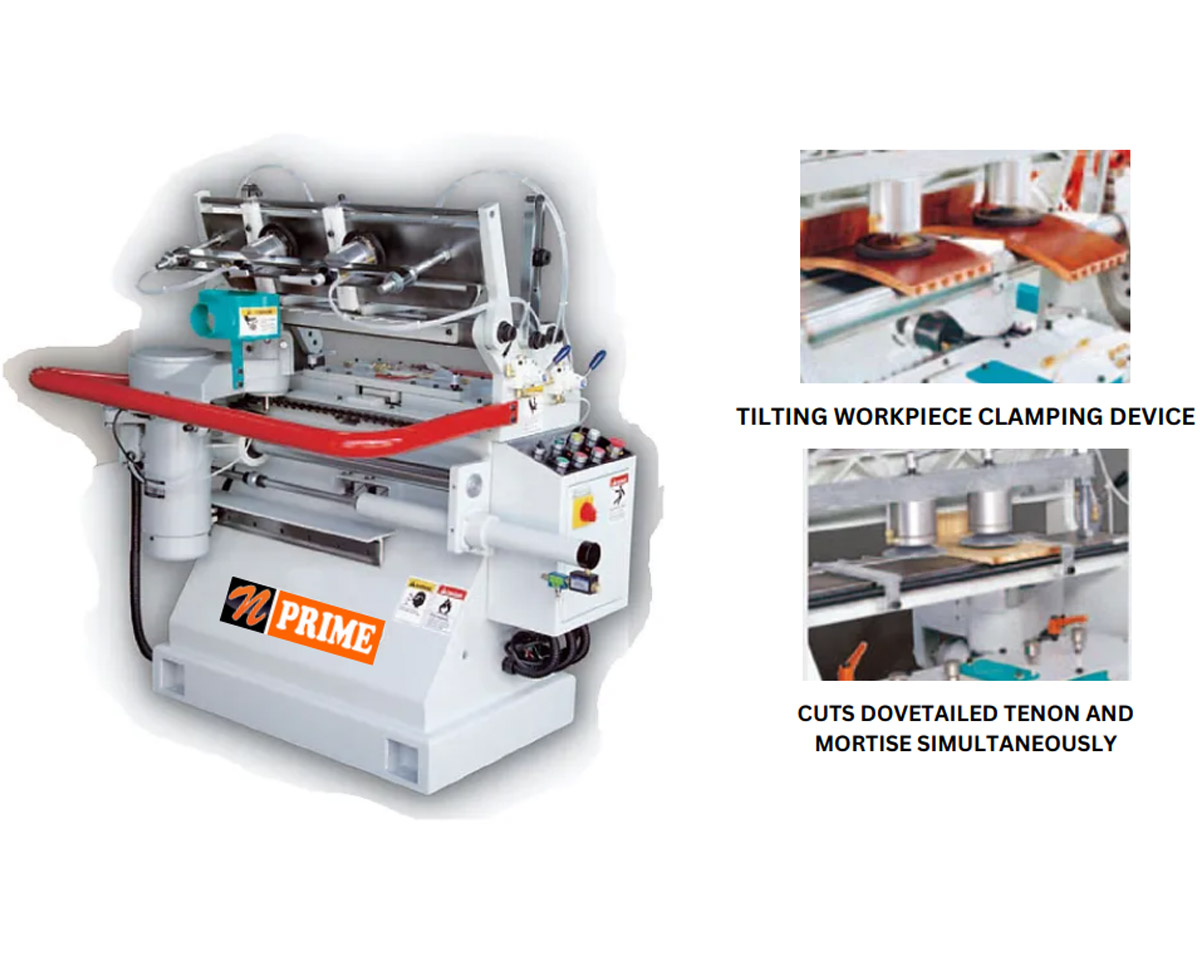

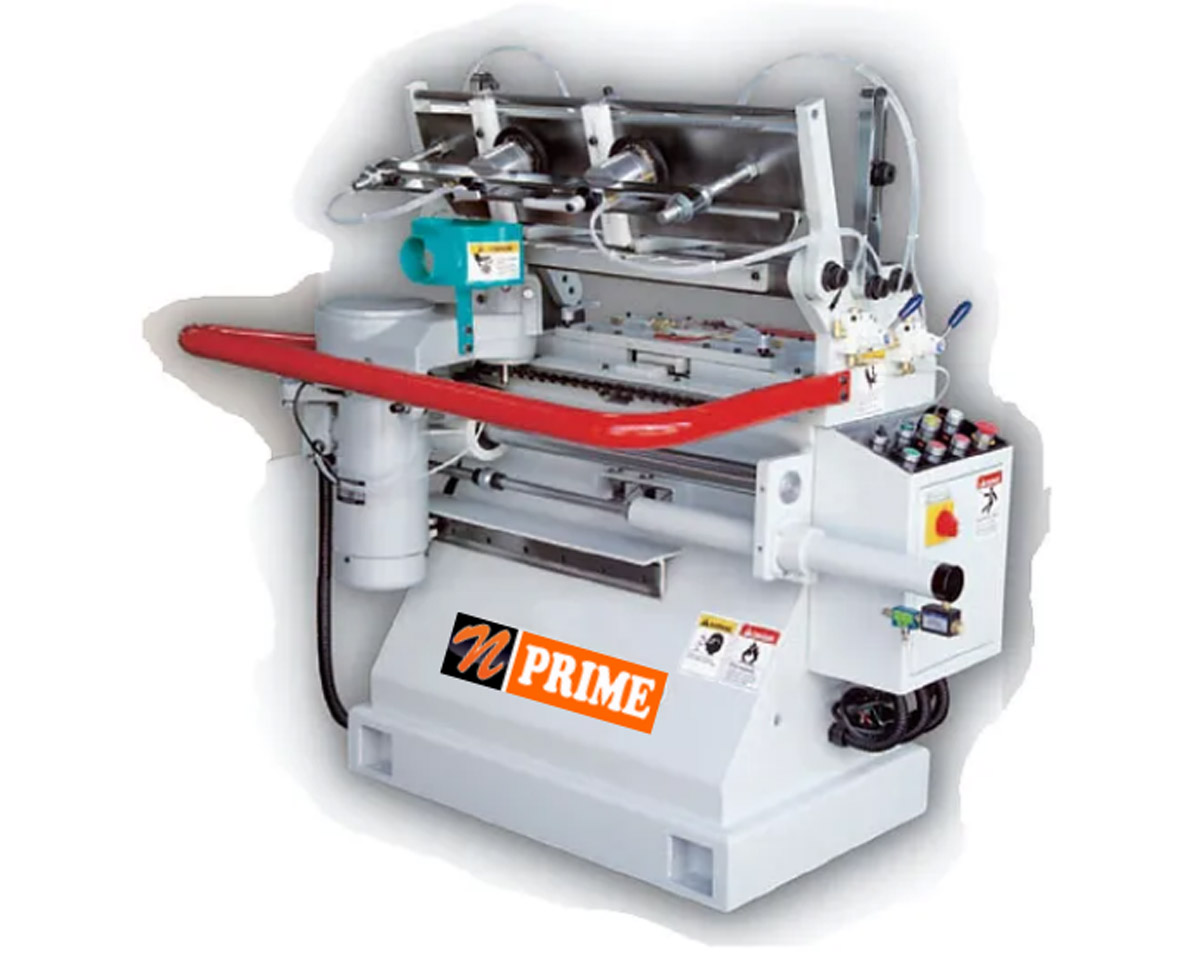

Continuous Dovetailer
Continuous Dovetailer
- Brand Name.
- SKU.NP-027
- Category.Solid Woodworking
ACD - 19A
- Continuous Dovetailer .
| Model | ACD - 19 A |
| TENON THICKNESS | MIN.8mm, MAX.20mm |
| TENON WIDTH | MIN.7mm, MAX.18mm |
| TENON DEPTH | MIN.10mm, MAX.30mm |
| SPINDLE VERTICAL ADJUSTMENT | 30mm |
| MAX.CLAMPING DEVICE TILTS | TILTING |
| MAX.WORKPIECE SIZES | LENGTH 1500 mm, WIDTH 480mm |
| COLLECT CHUCK CAPACITY | 12 mm |
| NUMBER OF AIR CLAMPS | 4 PCS |
| SPINDLE SPEED | 21,500 RPM |
| SPINDLE MOTOR | 2 Hp |
| WORKING AIR PRESSURE | 5 Kg |
| DUST HOOD OUTLET DIA. | 60 mm |
| FREQUENCY INVERTER | OPTIONAL |
| MACHINE DIMENSIONS(L*W*H) | 1270*780*1330 mm |
| PACKING DIMENSIONS(L*W*H) | 1420*910*1450 mm |
| N.W/G.W | 410 / 460 Kgs |
